Main Features

• Lifting Capacity: 1t~12t or more

• Lifting Height: 2~10m, customized

• Outreach: 2.5m~12m, customized

• Class: European design A5/2m, option A3

• Slew degree from 0 to 360°/270°/180°

Economic Design : Electric Chain Hoist

• 4 hoists synchronous working
• Class : A3

European FEM Design : Wire Rope Hoist

•  4 hoists synchronous working
• Class : 2m/ M5 (A5)

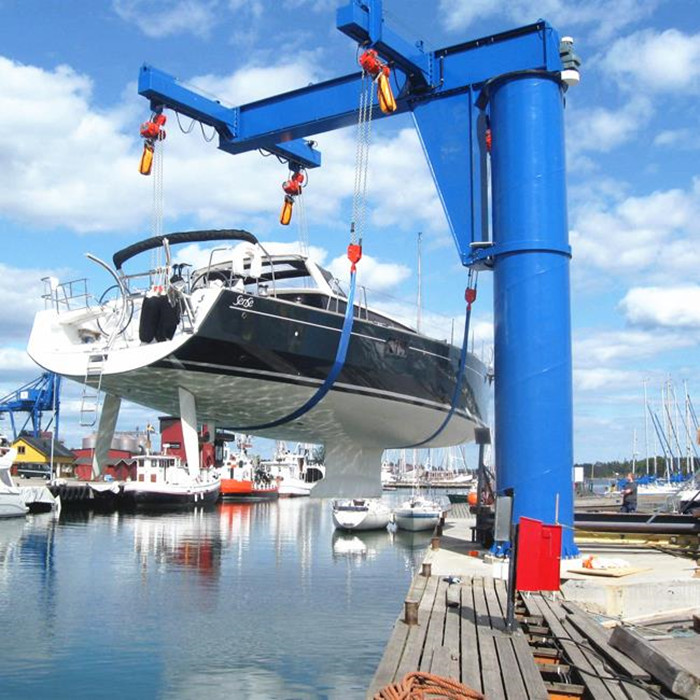

STONIMAGE Boat Jib crane with 4 hoists is composed of column, slewing arm, slewing drive device and electric hoist. The lower end of the column is fixed on the concrete foundation by anchor bolts. The electric hoist runs in a straight line on the cantilever I-beam and lifts heavy objects. It has the characteristics of light weight, large span, large lifting capacity, economy and durability. It is suitable for short distance, frequent use and intensive lifting operation. It has the characteristics of high efficiency, energy saving, trouble saving, small floor area, easy operation and maintenance.
